TG3-10Q/182(152*152)
TG3-10Q/182(152*152) wall bush
TG3-10Q/182(152*152) is an epoxy-resin wall bushing for insulated conductor passages in switchgear.
Need another rating or cabinet layout? Send your specification for model availability.
Product overview
About TG3-10Q/182(152*152)
TG3-10Q/182(152*152) is an epoxy-resin wall bushing for insulated conductor passages in switchgear.
For replacement or new switchgear assembly, confirm the TG3-10Q/182(152*152) dimensions and electrical or mechanical duty against the equipment drawing before ordering.
Engineering features
Application context

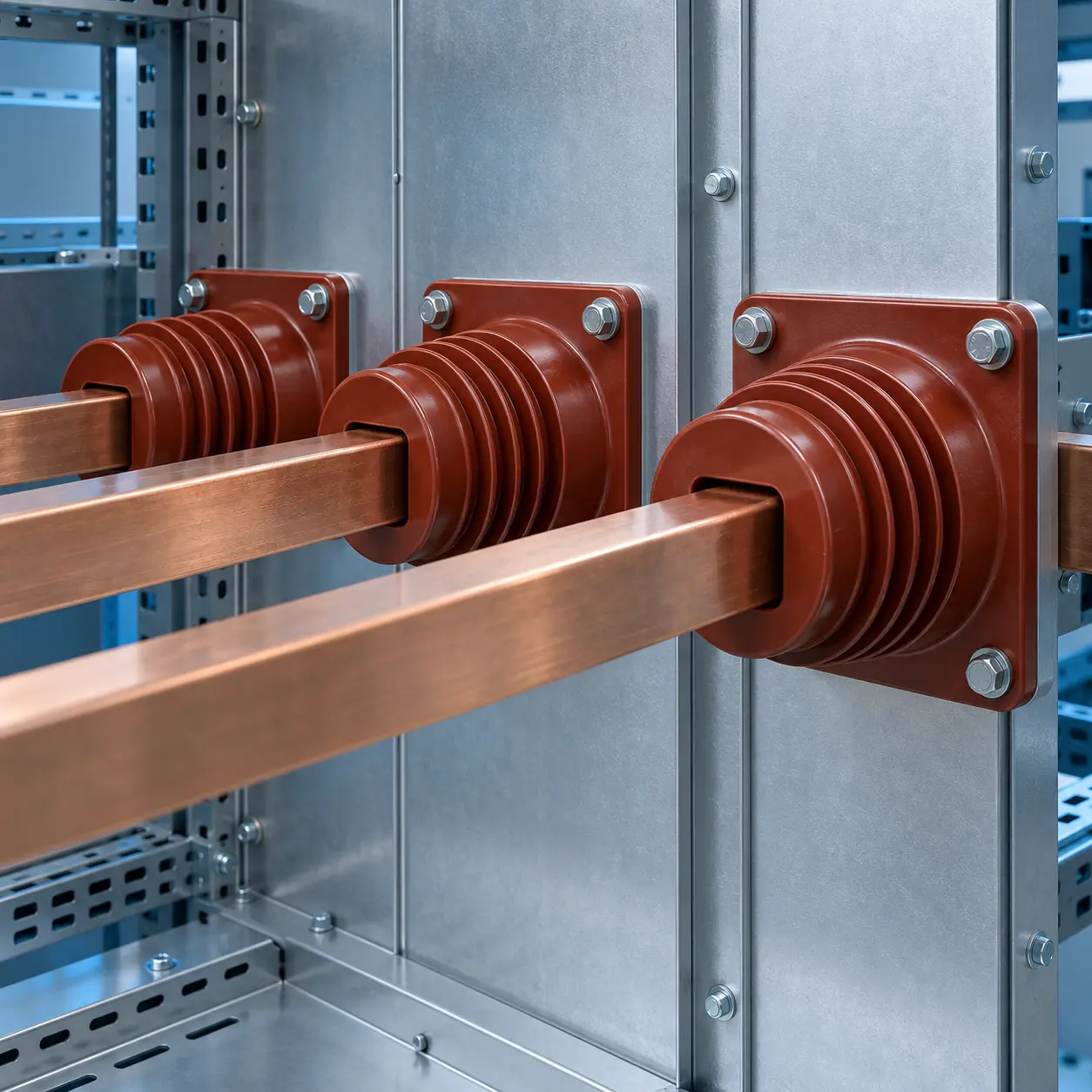

TG3-10Q/182(152*152) is used as a component in compatible electrical switchgear assemblies.
Technical data
Specifications for TG3-10Q/182(152*152)
Electrical and mechanical details supplied for this model.
Technical specifications for TG3-10Q/182(152*152)
| Parameter | Value |
|---|---|
| Model Number | TG3-10Q/182 ( 152*152) |
| Busbar size | 152*152mm |
| Height | 246mm |
| Rated Voltage | 12KV |
| Creepage distance | >240mm |
| Partial discharge | <10pc |
| Power frequency withstand voltage | 42kv/5min |
| Bending strength | 2000N |
| Materials | Epoxy resin |
| Packing way | According to customer’s requirement |
| Color | Red or Brown |
| Port | Ningbo, Shanghai |
| MOQ | 100 |
| Payment | TT, L/C |
| Delievery time | Depend on the quantity |
| Certification | CE and ISO9001:2000 |
Ordering guidance
Specify TG3-10Q/182(152*152) for your project
These details help match the model and its configuration to your electrical installation.
- 01
Electrical duty
Voltage, current and system requirements.
- 02
Model selection
Compare dimensions and available specifications.
- 03
Installation
Confirm layout, mounting and connections.
- 04
Documents
Request drawings and relevant test records.
Include these inputs with the RFQ
Related models
Other wall bushings products
Explore alternative models and compare the available specifications.
FAQ
TG3-10Q/182(152*152) questions answered
What is TG3-10Q/182(152*152) used for?+
TG3-10Q/182(152*152) is an epoxy-resin wall bushing for insulated conductor passages in switchgear.
How do I select TG3-10Q/182(152*152) for my equipment?+

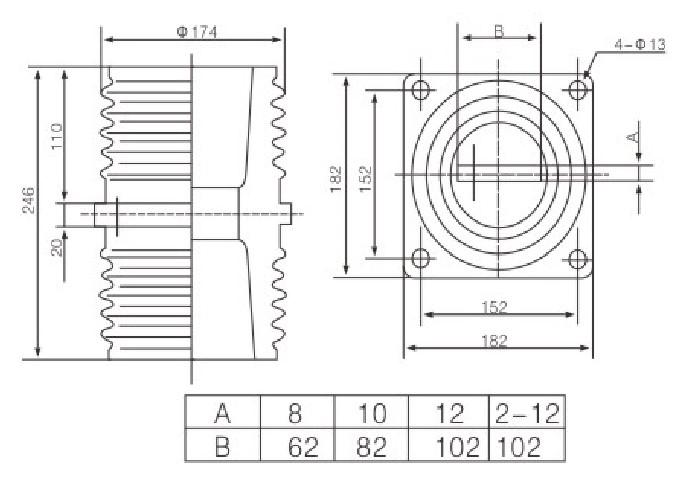

Check the switchgear model and nominal voltage, required component dimensions and mounting arrangement, rated current or mechanical duty, where applicable. Use the product drawing and technical data to confirm the exact model.
What should I send for a TG3-10Q/182(152*152) quotation?+
Send the required model, quantity and matching switchgear drawing or component dimensions. Include any required test documents and destination market.
