Project case · 37
KYN28-12 switchgear for Ukraine
A customized 12 kV KYN28-12 cubicle project documented with its single-line and outline drawings.
Project overview
KYN28-12 switchgear for Ukraine
The 12 kV KYN28-12 cubicle was configured around the customer's project-specific requirements.
The configuration omits the zero-sequence current transformer, leaves the relay cabinet empty, and retains lighting, heating and a low-voltage socket for the secondary circuit. The primary equipment includes the busbar, vacuum circuit breaker, surge arresters and earthing switch.

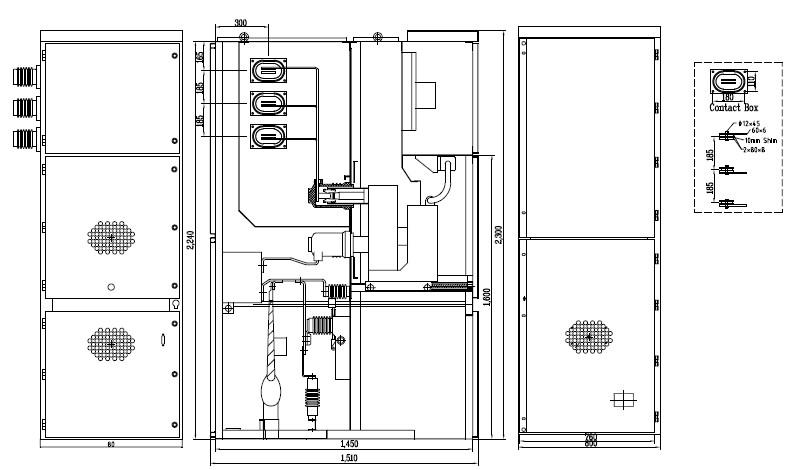

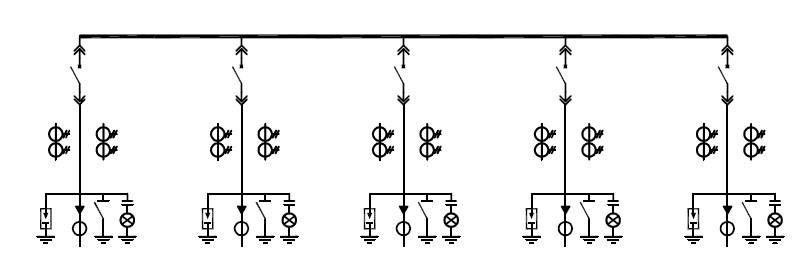

The project included a single-line diagram and equipment outline drawing for the KYN28-12 cubicle.
Project at a glance
Equipment and delivery scope
Key application, configuration and delivery details for this project.
- Destination
- Ukraine
- Voltage class
- 12 kV
- Model
- KYN28-12
- Primary equipment
- Busbar, VCB, surge arresters, earthing switch
Project gallery
Project equipment and site photos
View 3 photos of the equipment, drawings and site work.
