Product viewMedium-voltage switchgear
XGN15-12

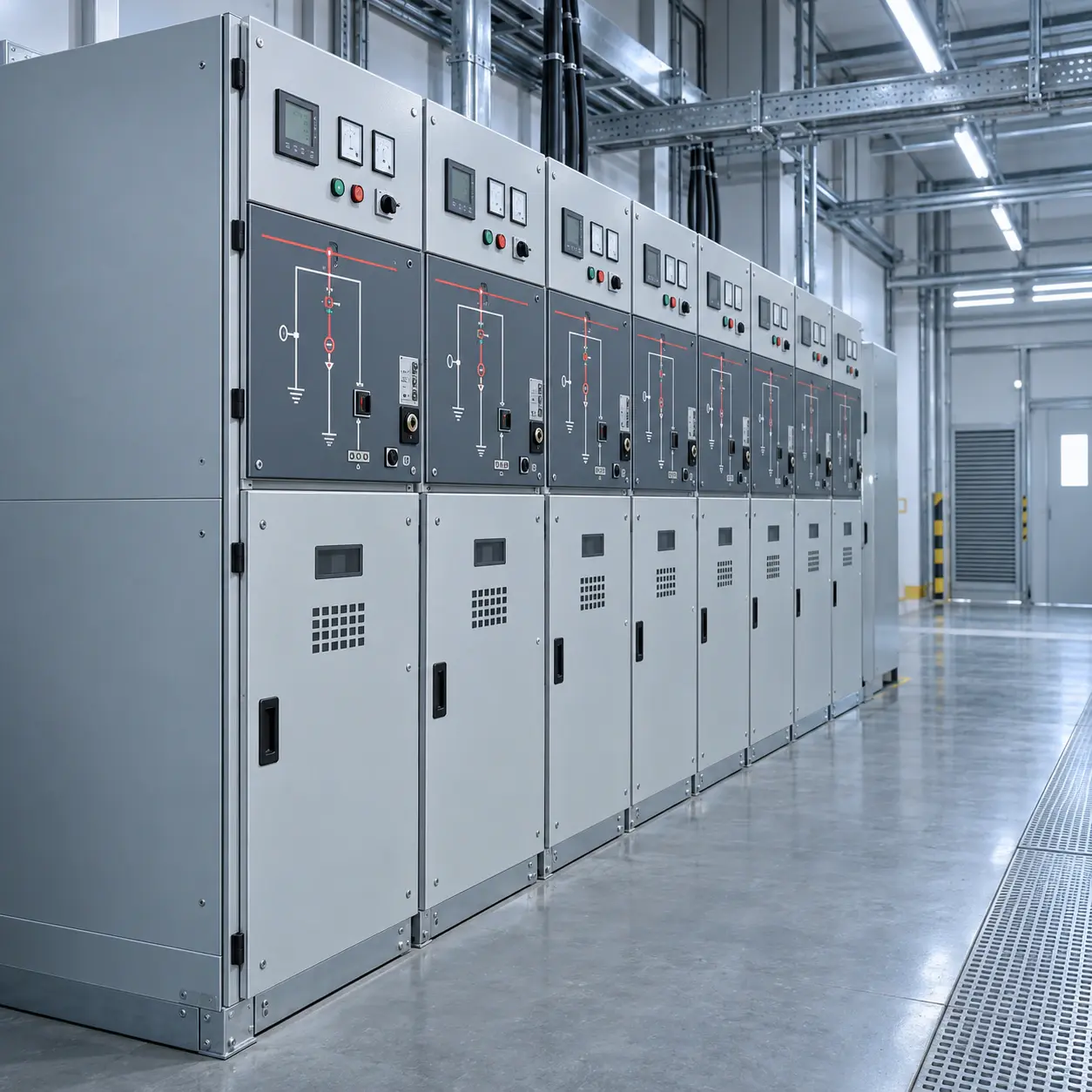

XGN15-12 switchgear
XGN15-12 fixed metal-enclosed switchgear uses an SF6 load switch for medium-voltage distribution systems.
Need another rating or cabinet layout? Send your specification for model availability.
Product overview
About XGN15-12
XGN15-12 fixed metal-enclosed switchgear uses an SF6 load switch for medium-voltage distribution systems.
Send your electrical specification and installation details to discuss a XGN15-12 configuration for your project.
Engineering features
Application context
Power distribution in industrial, commercial or utility electrical systems, according to the selected ratings and configuration.
Technical data
Specifications for XGN15-12
Electrical and mechanical details supplied for this model.
Technical specifications for XGN15-12
| Item | Unit | Data |
|---|---|---|
| Rated voltage | kV | 12 |
| Lightning impulse withstand voltage | Phase to phase, phase to earth | kV |
| Fracture | kV | 85 |
| 1min Power frequency withstand voltage | Phase to phase, phase to earth | kV |
| Fracture | kV | 48 |
| Rated frequency | Hz | 50/60 |
| Rated current | Main bus | A |
| Branch bus | A | 630 |
| Short time withstand current | Main circuit | kA |
| Earthing circuit | kA | 20/2S |
| Rated withstand current (peak) | kA | 50 |
| Rated transferring current | A | 1700 |
| Protection level | IP2X | — |
| Load break switch mechanical life | Times | 2000 |
| Earthing switch mechanical life | Times | 2000 |
Ordering guidance
Specify XGN15-12 for your project
These details help match the model and its configuration to your electrical installation.
- 01
Electrical duty
Voltage, current and system requirements.
- 02
Model selection
Compare dimensions and available specifications.
- 03
Installation
Confirm layout, mounting and connections.
- 04
Documents
Request drawings and relevant test records.
Include these inputs with the RFQ
Related models
Other medium-voltage switchgear products
Explore alternative models and compare the available specifications.
FAQ
XGN15-12 questions answered
What is XGN15-12 used for?+
XGN15-12 fixed metal-enclosed switchgear uses an SF6 load switch for medium-voltage distribution systems.
How do I select XGN15-12 for my equipment?+
Check the single-line diagram and system voltage, rated current and short-circuit duty, incomer, feeder and protection arrangement. Use the product drawing and technical data to confirm the exact model.
What should I send for a XGN15-12 quotation?+
Send the required model, quantity and single-line diagram or equipment specification. Include any required test documents and destination market.
