EK6
EK6 earthing switch
EK6 is an indoor earthing switch for integration into medium-voltage switchgear assemblies.
Need another rating or cabinet layout? Send your specification for model availability.
Product overview
About EK6
EK6 is an indoor earthing switch for integration into medium-voltage switchgear assemblies.

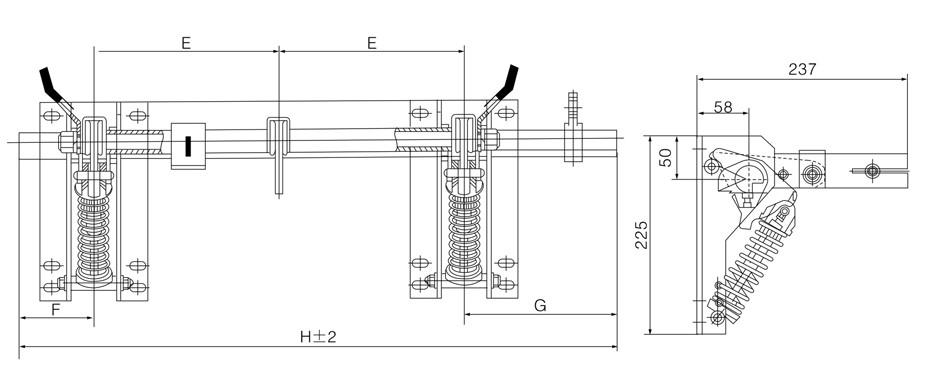

For replacement or new switchgear assembly, confirm the EK6 dimensions and electrical or mechanical duty against the equipment drawing before ordering.
Engineering features
Application context

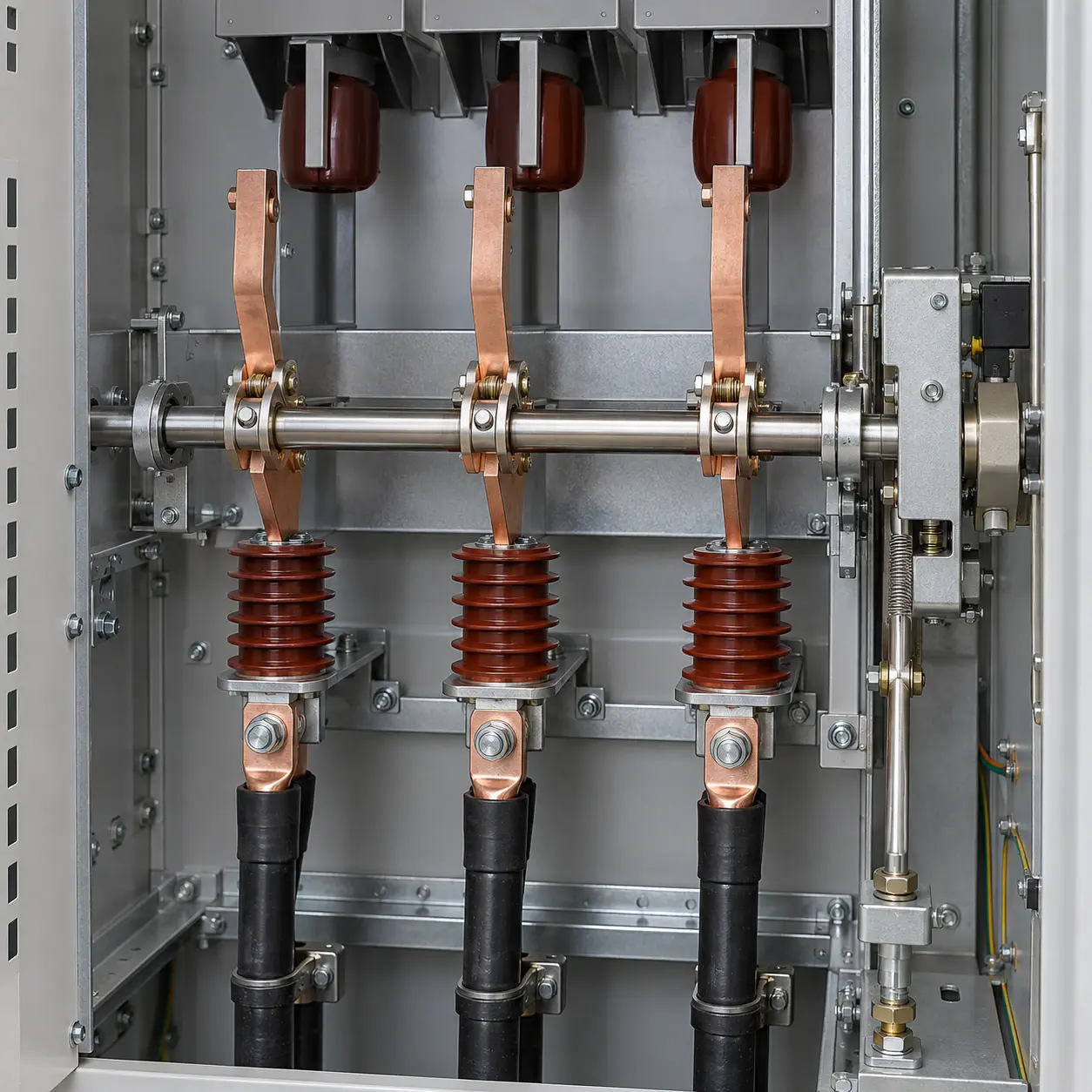

EK6 is used as a component in compatible electrical switchgear assemblies.
Technical data
Specifications for EK6
Electrical and mechanical details supplied for this model.
Technical specifications for EK6
| Specification | Unit | Data |
|---|---|---|
| rated voltage | KV | 12 |
| Rated short time withstand current | KA | 31.5 |
| Rated short duration | S | 4 |
| Rated short-circuit current | KA | 80 |
| Rated peak withstand current | KA | 80 |

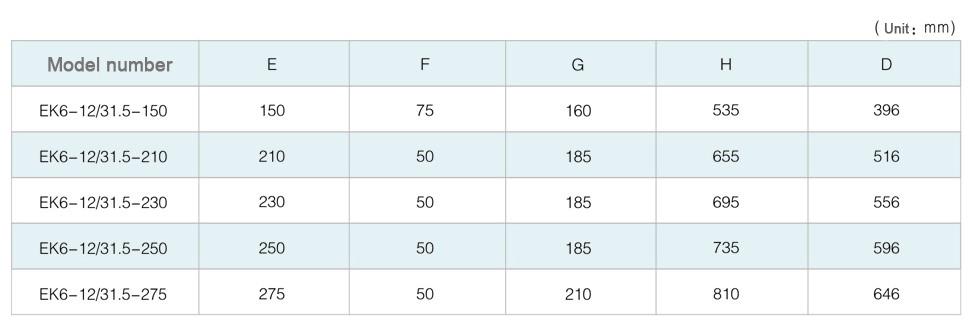

| center distance between poles | mm | 150, 210, 230, 250, 275 |
| Rated insulation level | 1min power frequency withstand voltage | KV |
| lightning impulse withstand voltage | 75/85 | — |
Ordering guidance
Specify EK6 for your project
These details help match the model and its configuration to your electrical installation.
- 01
Electrical duty
Voltage, current and system requirements.
- 02
Model selection
Compare dimensions and available specifications.
- 03
Installation
Confirm layout, mounting and connections.
- 04
Documents
Request drawings and relevant test records.
Include these inputs with the RFQ
Related models
Other earthing switches products
Explore alternative models and compare the available specifications.
FAQ
EK6 questions answered
What is EK6 used for?+
EK6 is an indoor earthing switch for integration into medium-voltage switchgear assemblies.
How do I select EK6 for my equipment?+
Check the switchgear model and nominal voltage, required component dimensions and mounting arrangement, rated current or mechanical duty, where applicable. Use the product drawing and technical data to confirm the exact model.
What should I send for a EK6 quotation?+
Send the required model, quantity and matching switchgear drawing or component dimensions. Include any required test documents and destination market.
