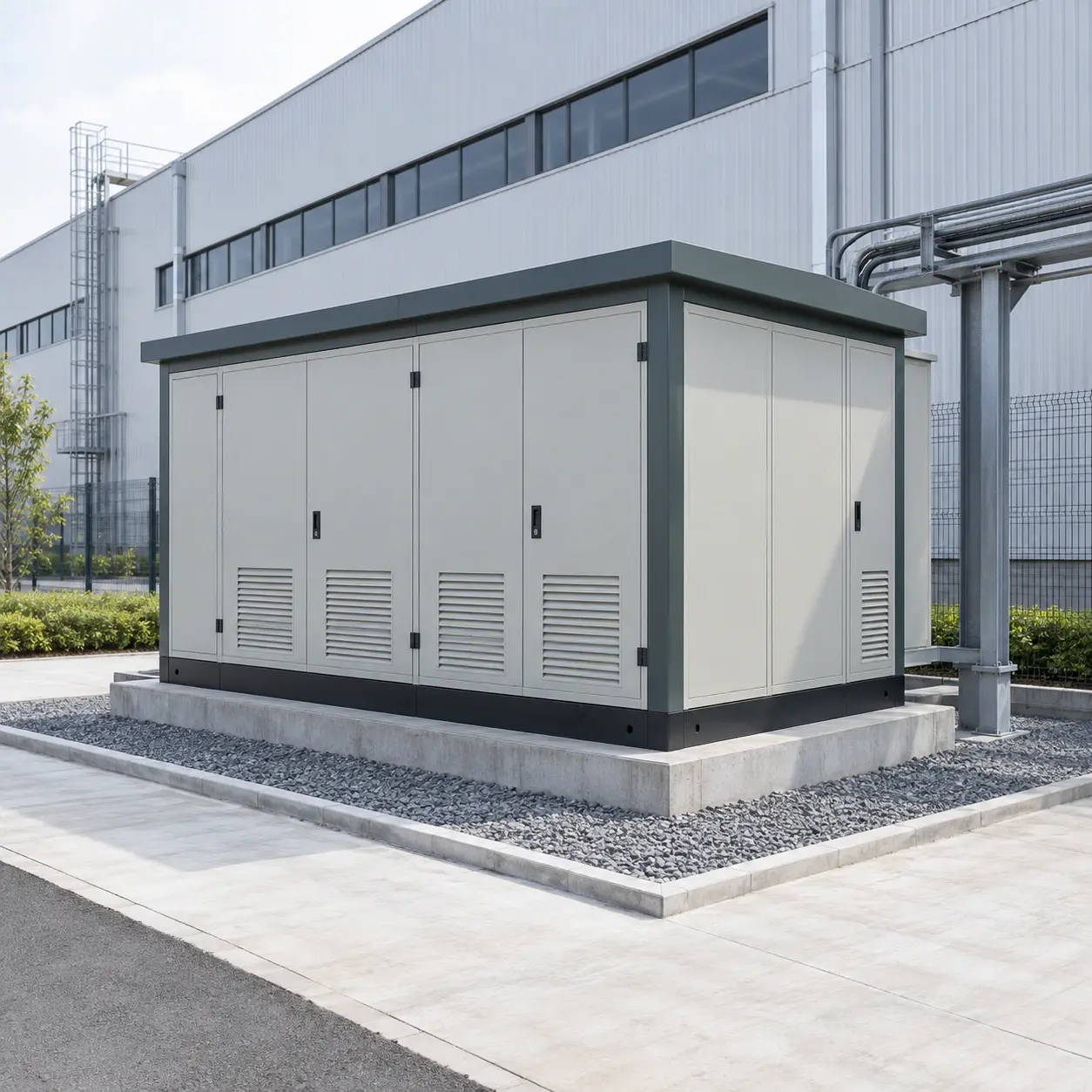

The YBM prefabricated transformer substation combines medium-voltage, transformer and low-voltage compartments in one packaged unit.
Need another rating or cabinet layout? Send your specification for model availability.
Product overview
About YBM
The YBM prefabricated transformer substation combines medium-voltage, transformer and low-voltage compartments in one packaged unit.
Send your electrical specification and installation details to discuss a YBM configuration for your project.

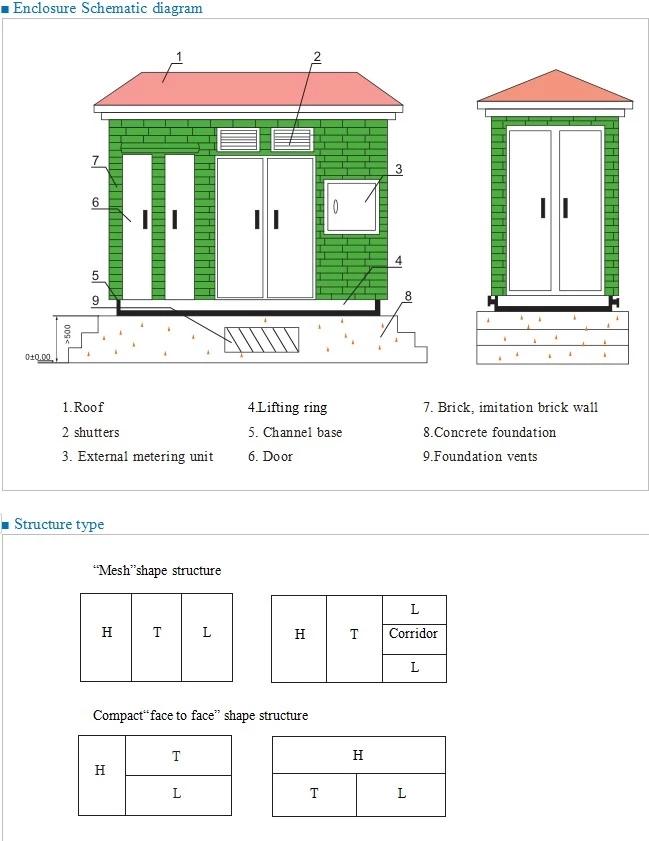

Engineering features
Application context
Outdoor or site-level power transformation and distribution, subject to the selected enclosure and system arrangement.
Referenced standards
Technical data
Specifications for YBM
Electrical and mechanical details supplied for this model.
Technical specifications for YBM
| High voltage compartment | item | unit | Parameter |
|---|---|---|---|
| Rated frequency | Hz | 50 /60 Hz | — |
| Rated Voltage | KV | 3.3KV, 6.0KV, 6.6KV | 10KV 11KV 13.8KV 15KV 20KV 22kv |
| Max service voltage | KV | 7.2 KV | 12KV, 24KV |
| Rated current | A | 400, 630, 1000, 1250,1600, 2000, 2150,... etc | — |
| Transfer current | A | 1200 -3150 A | — |
| 1MIN Power frequency withstand voltage, earth -phase | KV | 42/48, 85/95 | — |
| 1MIN Power frequency withstand voltage, phase/fracture | — | — | — |
| BIL | KV | 75/85, 170/185 | — |
| Rated short circuit breaking current | KA | 20, 31.5 | — |
| Transformer compartment | Rated voltage | KV | 3.3KV, 6.0KV, 6.6KV |
| Rated power capacity | KVA | 200 KVA Upto 2.5 MVA | — |
| Tapping range | % | ±2 X 2.5%, ±5% | — |
| Vector group | — | Yyn0, Dyn11 | — |
| Short-circuit Impedance | % | 4.0, 4.2, 4.5, 6, 8 | — |
| Low voltage compartment | rated voltage | V | 220, 380, 400, 415, 433, 440, 660, 690,800 |
| main circuit rated current | A | 50 -4000 | — |
| branch current | A | 5-800 | — |
| Enclosure | protection level | — | — |
| HV compartment | — | IP33, IP65.. | — |
| LV compartment | — | IP33 | — |
| Transformer compartment | — | IP23 | — |
| Noise level | dB | ≤ 50 | — |
