Product viewLow-voltage switchgear
GGJ

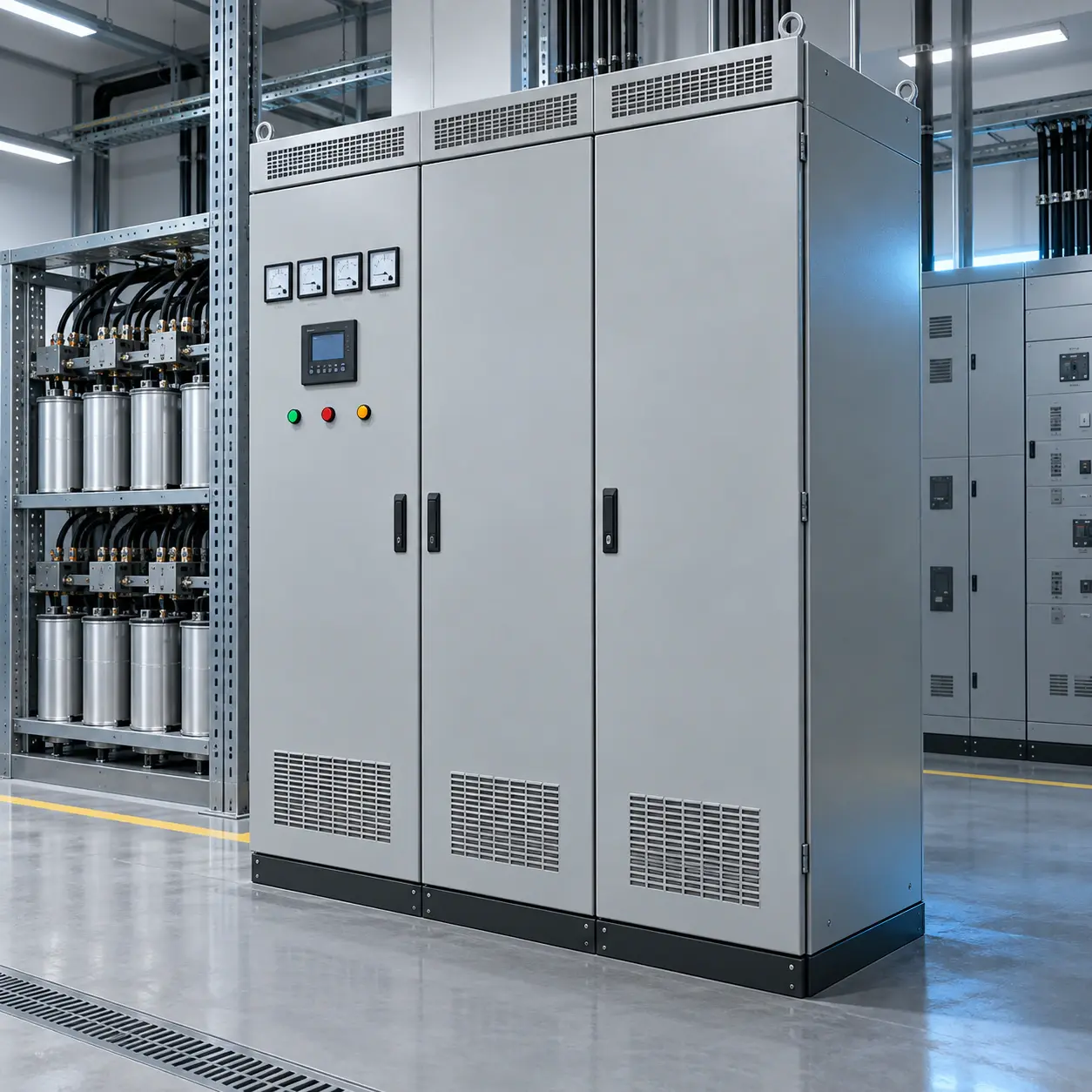

GGJ PFCP Panel
GGJ low-voltage power-factor correction panels provide reactive-power compensation for electrical distribution systems.
Need another rating or cabinet layout? Send your specification for model availability.
Product overview
About GGJ
GGJ low-voltage power-factor correction panels provide reactive-power compensation for electrical distribution systems.
Send your electrical specification and installation details to discuss a GGJ configuration for your project.
Engineering features
Application context
Power distribution in industrial, commercial or utility electrical systems, according to the selected ratings and configuration.
Technical data
Specifications for GGJ
Electrical and mechanical details supplied for this model.
Technical specifications for GGJ
| Parameter | Value |
|---|---|
| Name | Parameter |
| Overvoltage category | IV III |
| Class of pollution | 3 |
| Rated voltage (V) | 280 (660) |
| Rated insulation voltage (V) | 660 (1000) |
| Rated frequency (Hz) | 50 (60) |
| Horizontal busbar | — |
| Rated current | 5000A 4000A 3150A 2500A 2000A 630A |
| Rated short time withstand current (kA) | 50, 65, 80 |
| Rated peak withstand current (kA) | 105, 140, 176 |
| Vertical Busbar | — |
| Rated max working current | 1000A |
| Rated short time withstand current (kA) | 50kA |
| Rated peak withstand current (kA) | 105kA |
| Outshell protection class | IP30 IP40 |
Ordering guidance
Specify GGJ for your project
These details help match the model and its configuration to your electrical installation.
- 01
Electrical duty
Voltage, current and system requirements.
- 02
Model selection
Compare dimensions and available specifications.
- 03
Installation
Confirm layout, mounting and connections.
- 04
Documents
Request drawings and relevant test records.
Include these inputs with the RFQ
Related models
Other low-voltage switchgear products
Explore alternative models and compare the available specifications.
FAQ
GGJ questions answered
What is GGJ used for?+
GGJ low-voltage power-factor correction panels provide reactive-power compensation for electrical distribution systems.
How do I select GGJ for my equipment?+
Check the single-line diagram and system voltage, rated current and short-circuit duty, incomer, feeder and protection arrangement. Use the product drawing and technical data to confirm the exact model.
What should I send for a GGJ quotation?+
Send the required model, quantity and single-line diagram or equipment specification. Include any required test documents and destination market.
