Product viewLow-voltage switchgear
GGD

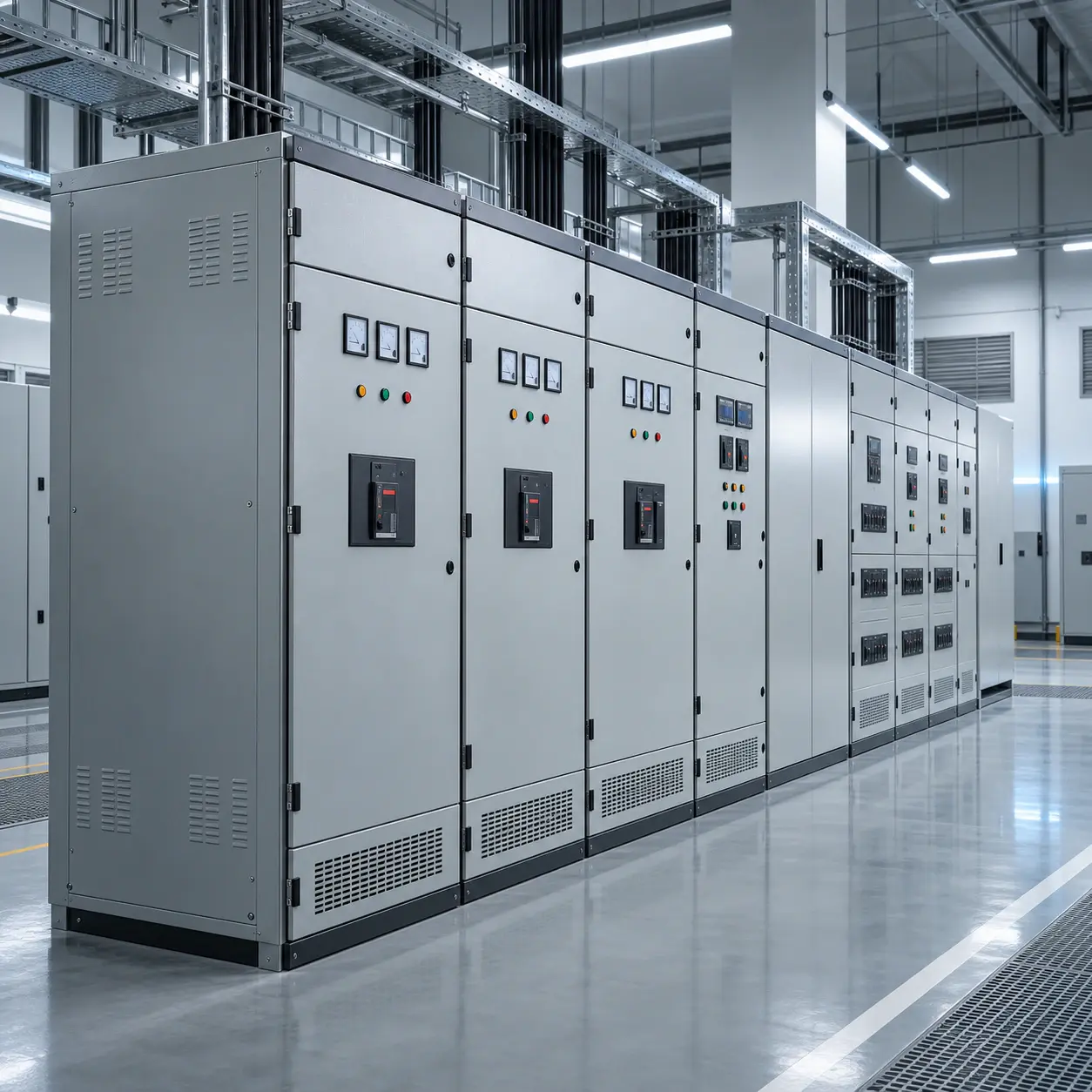

GGD switchgear
GGD low-voltage switchgear distributes AC power in power plants, substations and industrial electrical rooms.
Need another rating or cabinet layout? Send your specification for model availability.
Product overview
About GGD
GGD low-voltage switchgear distributes AC power in power plants, substations and industrial electrical rooms.
Send your electrical specification and installation details to discuss a GGD configuration for your project.
Engineering features
Application context
Power distribution in industrial, commercial or utility electrical systems, according to the selected ratings and configuration.
Referenced standards
Technical data
Specifications for GGD
Electrical and mechanical details supplied for this model.
Technical specifications for GGD
| Type | Rated voltage(V) | Rated current(A) | Rated short circuit breaking current (KA) | Rated short time withstand current(1s)(KA) | Rated peak withstand current(KA) |
|---|---|---|---|---|---|
| GGD1 | 400 | A | 1000 | 15 | 15 |
| B | 600(630) | — | — | — | — |
| C | 400 | — | — | — | — |
| GGD2 | 400 | A | 1500(1600) | 30 | 30 |
| B | 1000 | — | — | — | — |
| C | 600(630) | — | — | — | — |
| GGD3 | 400 | A | 3200 | 50 | 50 |
| B | 2500 | — | — | — | — |
| C | 2000 | — | — | — | — |
Ordering guidance
Specify GGD for your project
These details help match the model and its configuration to your electrical installation.
- 01
Electrical duty
Voltage, current and system requirements.
- 02
Model selection
Compare dimensions and available specifications.
- 03
Installation
Confirm layout, mounting and connections.
- 04
Documents
Request drawings and relevant test records.
Include these inputs with the RFQ
Related models
Other low-voltage switchgear products
Explore alternative models and compare the available specifications.
FAQ
GGD questions answered
What is GGD used for?+
GGD low-voltage switchgear distributes AC power in power plants, substations and industrial electrical rooms.
How do I select GGD for my equipment?+
Check the single-line diagram and system voltage, rated current and short-circuit duty, incomer, feeder and protection arrangement. Use the product drawing and technical data to confirm the exact model.
What should I send for a GGD quotation?+
Send the required model, quantity and single-line diagram or equipment specification. Include any required test documents and destination market.
