Product viewLow-voltage switchgear
JXF
JXF metal switchgear

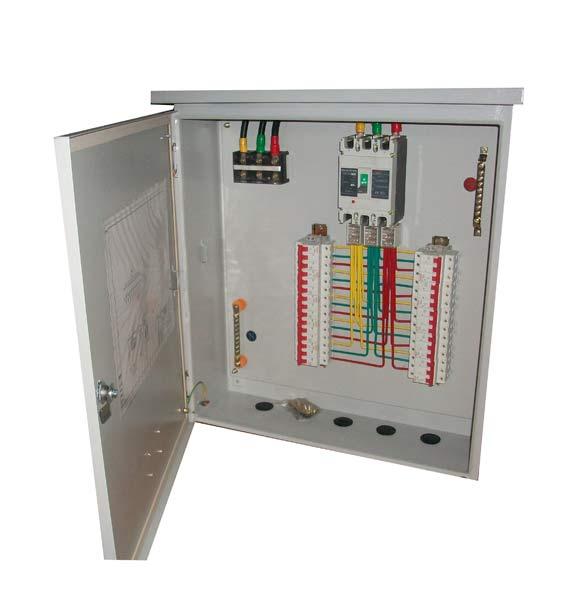

JXF metal distribution boxes house low-voltage electrical components in a steel enclosure; size and layout can be specified for the installation.
Need another rating or cabinet layout? Send your specification for model availability.
Product overview
About JXF
JXF metal distribution boxes house low-voltage electrical components in a steel enclosure; size and layout can be specified for the installation.
Send your electrical specification and installation details to discuss a JXF configuration for your project.
Engineering features
Application context
Power distribution in industrial, commercial or utility electrical systems, according to the selected ratings and configuration.
Referenced standards
Technical data
Specifications for JXF
Electrical and mechanical details supplied for this model.
Technical specifications for JXF
| H | W | D | Thickness(mm) |
|---|---|---|---|
| mm | mm | mm | Door |
| 200 | 200 | 150 | 1.2 |
| 250 | 200 | 150 | 1.2 |
| 300 | 200 | 150 | 1.2 |
| 300 | 200 | 200 | 1.2 |
| 300 | 250 | 150 | 1.2 |
| 300 | 250 | 200 | 1.2 |
| 300 | 250 | 250 | 1.2 |
| 300 | 300 | 150 | 1.2 |
| 300 | 300 | 200 | 1.2 |
| 300 | 300 | 250 | 1.2 |
| 600 | 400 | 230 | 1.2 |
| 600 | 500 | 140 | 1.2 |
| 600 | 800 | 200 | 1.2 |
| 600 | 500 | 230 | 1.2 |
| 700 | 500 | 160 | 1.2 |
| 700 | 500 | 200 | 1.2 |
| 700 | 500 | 230 | 1.2 |
| 400 | 300 | 140 | 1.2 |
| 400 | 300 | 200 | 1.2 |
| 500 | 400 | 140 | 1.2 |
| 500 | 400 | 200 | 1.2 |
| 500 | 400 | 230 | 1.2 |
| 800 | 600 | 200 | 1.2 |
| 800 | 600 | 230 | 1.2 |
| 800 | 600 | 250 | 1.2 |
| 1000 | 800 | 200 | 1.2 |
| 1000 | 800 | 250 | 1.2 |
| 1000 | 800 | 300 | 1.2 |
