Product viewLow-voltage switchgear
GCK

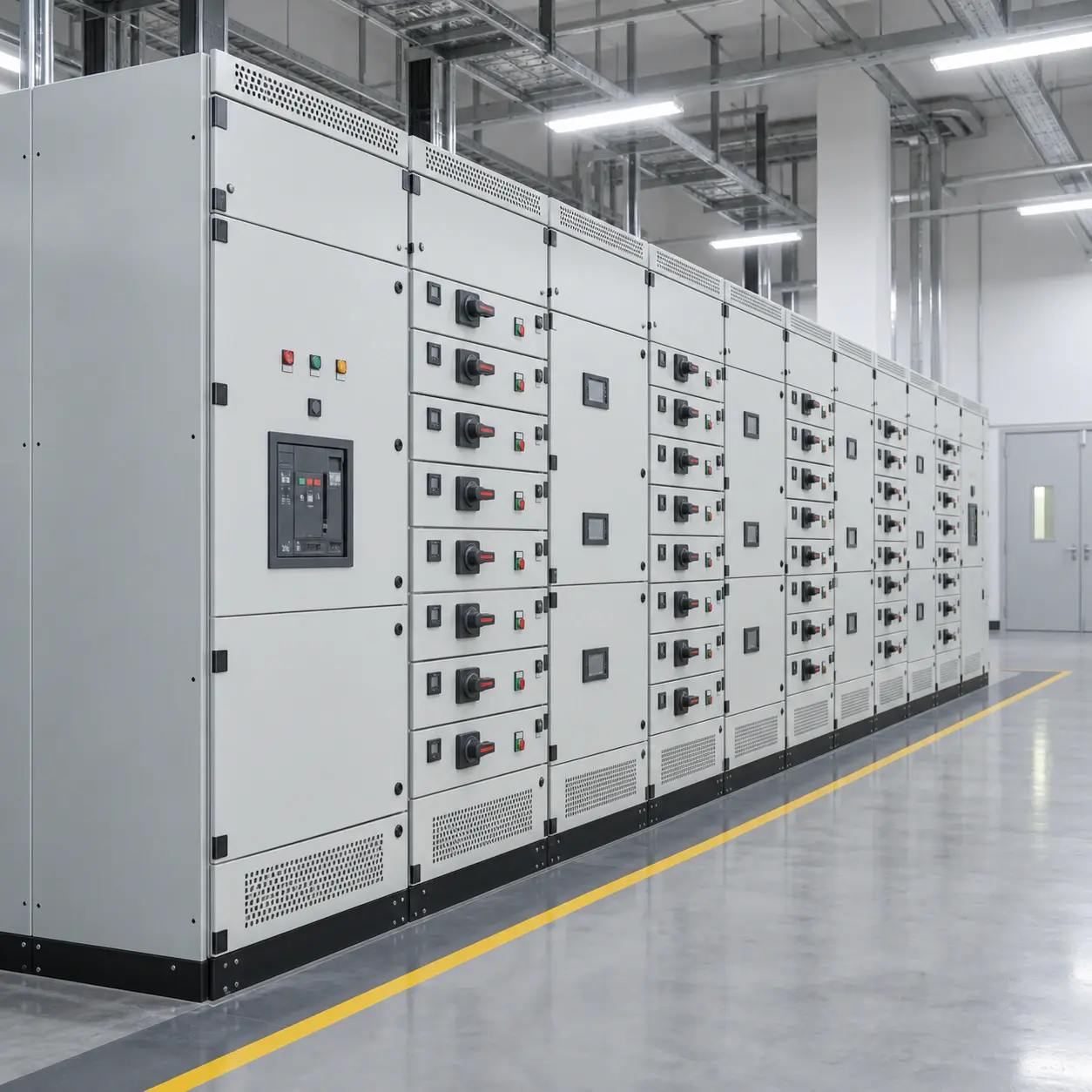

GCK withdrawable panel
GCK withdrawable low-voltage switchgear provides power distribution and motor-control functions for industrial and utility installations.
Need another rating or cabinet layout? Send your specification for model availability.
Product overview
About GCK
GCK withdrawable low-voltage switchgear provides power distribution and motor-control functions for industrial and utility installations.
Send your electrical specification and installation details to discuss a GCK configuration for your project.
Engineering features
Application context
Power distribution in industrial, commercial or utility electrical systems, according to the selected ratings and configuration.
Technical data
Specifications for GCK
Electrical and mechanical details supplied for this model.
Technical specifications for GCK
| Project | Unit | Numerical value |
|---|---|---|
| Rated voltage | V | AC380, AC660 |
| Rated power | Hz | 50/60 |
| Rated operating current | Horizontal bus | A |
| Vertical bus | A | Less than or equal 6000 |
| Rated short-time withstand current (1s) | KA | 30,50,80 |
| Rated peak withstand current | KA | 63,105,176 |
| Dielectric strength | V/1min | 2500 |
| Rated insulation voltage | V | 660,1000 |
| Control motor capacity | KW | 0.5~155 |
| Protection level | — | IP30/IP40 |
| Dimensions(L*W*H) | mm | 600(800/1000)*600(800/1000)*2200 |
Ordering guidance
Specify GCK for your project
These details help match the model and its configuration to your electrical installation.
- 01
Electrical duty
Voltage, current and system requirements.
- 02
Model selection
Compare dimensions and available specifications.
- 03
Installation
Confirm layout, mounting and connections.
- 04
Documents
Request drawings and relevant test records.
Include these inputs with the RFQ
Related models
Other low-voltage switchgear products
Explore alternative models and compare the available specifications.
FAQ
GCK questions answered
What is GCK used for?+
GCK withdrawable low-voltage switchgear provides power distribution and motor-control functions for industrial and utility installations.
How do I select GCK for my equipment?+
Check the single-line diagram and system voltage, rated current and short-circuit duty, incomer, feeder and protection arrangement. Use the product drawing and technical data to confirm the exact model.
What should I send for a GCK quotation?+
Send the required model, quantity and single-line diagram or equipment specification. Include any required test documents and destination market.
