Product viewLow-voltage switchgear
XL-21

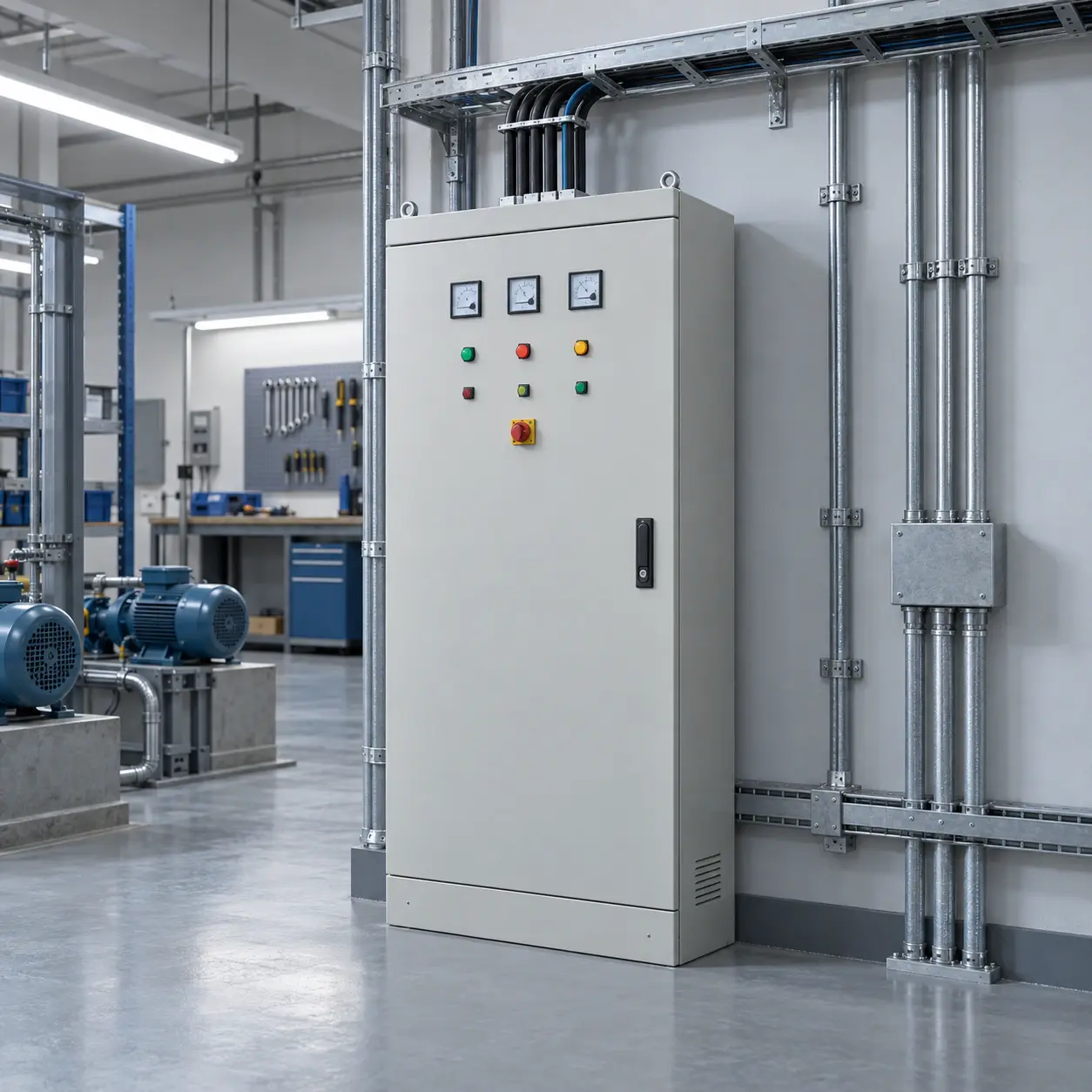

XL-21 power panel
XL-21 low-voltage power panels distribute power and lighting circuits in industrial and commercial installations.
Need another rating or cabinet layout? Send your specification for model availability.
Product overview
About XL-21
XL-21 low-voltage power panels distribute power and lighting circuits in industrial and commercial installations.
Send your electrical specification and installation details to discuss a XL-21 configuration for your project.
Engineering features
Application context
Power distribution in industrial, commercial or utility electrical systems, according to the selected ratings and configuration.
Technical data
Specifications for XL-21
Electrical and mechanical details supplied for this model.
Technical specifications for XL-21
| Items | Unit | Parameter |
|---|---|---|
| Rated voltage | V | AC380, AC660 |
| Rated frequence | HZ | 50/60 |
| Rated short time withstand current | KA | 30 50 |
| Rated peak withstand current | KA | 63 105 |
| Dielectric strength | V/1Min | 2500 |
| Rated insulation voltage | V | 660 |
| Protection level | — | IP30/IP40 |
| Width*Depth*Heigth | MM | Customize |
Ordering guidance
Specify XL-21 for your project
These details help match the model and its configuration to your electrical installation.
- 01
Electrical duty
Voltage, current and system requirements.
- 02
Model selection
Compare dimensions and available specifications.
- 03
Installation
Confirm layout, mounting and connections.
- 04
Documents
Request drawings and relevant test records.
Include these inputs with the RFQ
Related models
Other low-voltage switchgear products
Explore alternative models and compare the available specifications.
FAQ
XL-21 questions answered
What is XL-21 used for?+
XL-21 low-voltage power panels distribute power and lighting circuits in industrial and commercial installations.
How do I select XL-21 for my equipment?+
Check the single-line diagram and system voltage, rated current and short-circuit duty, incomer, feeder and protection arrangement. Use the product drawing and technical data to confirm the exact model.
What should I send for a XL-21 quotation?+
Send the required model, quantity and single-line diagram or equipment specification. Include any required test documents and destination market.
